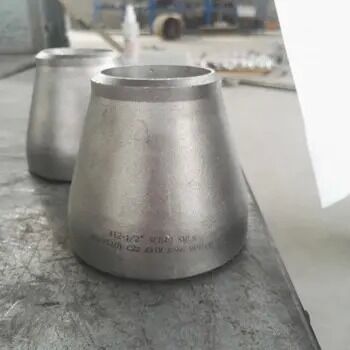

High Pressure Stainless Steel Butt Weld Reducer ASME B16.9 1500LB Pipe Fitting

  • High Pressure Stainless Steel Butt Weld Reducer ASME B16.9 1500LB Pipe Fitting
  • High Pressure Stainless Steel Butt Weld Reducer ASME B16.9 1500LB Pipe Fitting
  • High Pressure Stainless Steel Butt Weld Reducer ASME B16.9 1500LB Pipe Fitting
  • High Pressure Stainless Steel Butt Weld Reducer ASME B16.9 1500LB Pipe Fitting
  • High Pressure Stainless Steel Butt Weld Reducer ASME B16.9 1500LB Pipe Fitting
محل منبع شانگهای، چین
نام تجاری TOBO
گواهی ISO/TUV/SGS
شماره مدل کاهنده فولاد ضد زنگ
مقدار حداقل تعداد سفارش 1 عدد
قیمت قابل مذاکره
جزئیات بسته بندی بسته حمل و نقل استاندارد
زمان تحویل 15-30 روز کاری
شرایط پرداخت T/T، وسترن یونیون
قابلیت ارائه 10 تن در ماه
جزئیات محصول
نام محصول کاهنده هم مرکز جوش لب به لب فولاد ضد زنگ فشار بالا ASME B16.9 1500LB بسته کارتن، جعبه چوبی و غیره
کاهنده نام کاهنده فولاد ضد زنگ ابعاد 2.5 x 1.5 x 1.5 اینچ
نوع بسته جعبه حداکثر دما 400 درجه فارنهایت
حداکثر فشار 3000 psi نام محصول اتصالات لوله
کاهش دهنده اندازه کاهنده 1/2''-40'' استاندارد قابل اجرا ASME/ANSI، JIS، EN، DIN
بسته بندی جعبه تخته سه لا یا پالت مبدا چین
سطح صیقلی، صیقلی آینه فرآیند تولید بدون درز/جوش داده شده
طول 6 متر یا سفارشی فشار Sch5s-Sch160
برجسته کردن

High Pressure Stainless Steel Reducer

,

ASME B16.9 Butt Weld Reducer

,

1500LB Pipe Fitting
پیام بگذارید
توضیحات محصول

High Pressure Stainless Steel Butt Weld Concentric Reducer ASME B16.9 1500LB


1. Product Description



Stainless Steel Reducer is a robust pipe fitting engineered to join piping sections with different bore sizes. Manufactured from high‑grade stainless steel, it provides a gradual tapered transition that preserves flow efficiency and reduces mechanical stress on the system. Offered in Concentric (symmetrical) and Eccentric (offset, flat‑bottom) configurations to suit various installation layouts.


2. Product Applications

  • Crude oil and natural gas transmission networks

  • Refinery and petrochemical processing units

  • Urban water distribution and drainage systems

  • Thermal and hydroelectric power stations

  • Food production and beverage filling lines

  • Offshore drilling platforms and ship piping

  • Air conditioning and large‑scale refrigeration

  • Steel mills and non‑ferrous metal processing

  • Paper manufacturing and printing facilities

​3.Product Advantages

  • High‑quality stainless steel composition provides lasting protection against oxidation and chemical attack.

  • Exceptional load‑bearing capacity under high pressure, vibration, and thermal expansion.

  • Precise machining guarantees tight tolerances and firm, leak‑free weld joints.

  • Smooth internal bore reduces fouling and facilitates easy cleaning.

  • Seamless and welded options available to balance performance and budget.

  • Stable performance from sub‑zero to elevated temperatures with minimal maintenance.

  • Tailored solutions available – alternative grades, special schedules, and custom finishes.

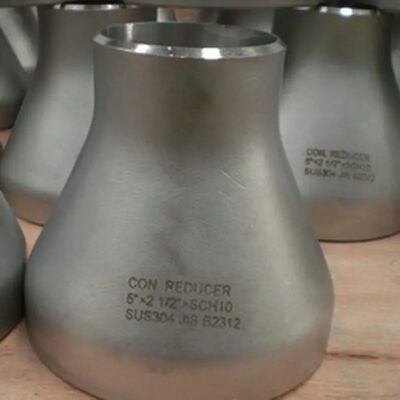

​High Pressure Stainless Steel Butt Weld Reducer ASME B16.9 1500LB Pipe Fitting 0​

4.Key Product Parameters



Parameter Specification
Available Materials 304, 304L, 316, 316L, 317L, 321, 310S, 347, 904L, 2205, 2507
Manufacturing Route Seamless (cold-drawn) or Welded (plate-formed)
Seamless Size Offering 1/2" – 20" (DN15 – DN500)
Welded Size Offering 1/2" – 48" (DN15 – DN1200)
Wall Thickness Options SCH 5S, 10S, 20S, 40S, 80S, STD, XS, XXS (1.0 – 30 mm)
Configuration Concentric, Eccentric
Connection Style Buttweld (bevelled); Socket-weld (plain end)
Applicable Codes ASME B16.9, B16.28, MSS SP-43, DIN 2616, JIS B2313, GB/T12459
Tensile Strength (min.) 515 MPa (304/316 series); 620 MPa (Duplex)
Surface Condition Pickled & passivated, polished, grit-blasted, electro-polished
Working Temperature -20°C to 400°C (standard); up to 650°C (high-temp grades)
Pressure Drop <5% of inlet pressure under normal service
End Tolerances OD: ±1.5 mm; Wall: ±10% ~ 12.5% per standard



FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
